传输介质为滚筒,可根据应用场景选择防静电、防尘、耐磨、耐酸碱等特性的滚筒。驱动位置可以在输送机的任意位置。

Transmission medium for the drum, according to the application scenario can choose anti-static, dust, wear-resistant, acid and alkali drum and other characteristics. The driving position can be anywhere on the conveyor.

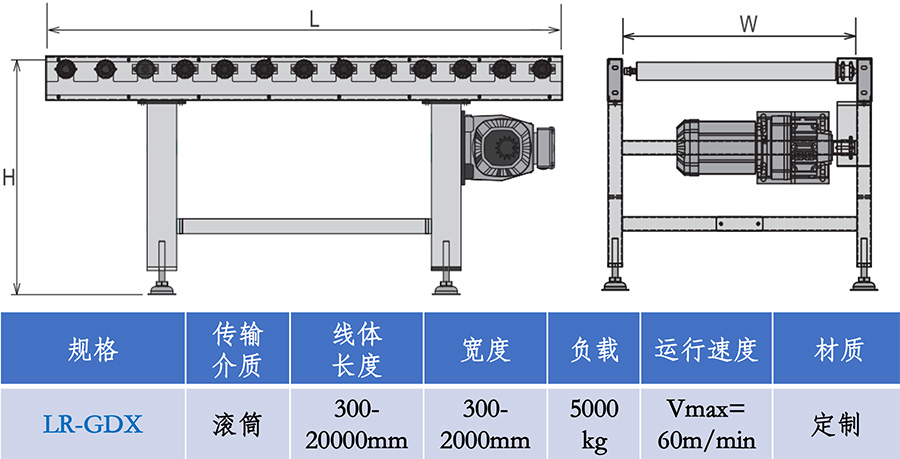

最大单机负载为5000kg最大运行速度为60m/min

The maximum single machine load is5000kg and the maximum operating speed is 60m/min

最大线体长度为6m，宽度不超过1500mm

The maximum line length is 20m and the maximum tray width can be used is not more than 1500mm

传动模式可根据需要选择多契带、链条、同步带、O型带等传动。

The transmission mode can choose multi-contract belt, chain, synchronous belt, o-type belt and so on.

滚筒直径一般有3/50/60/76/80/89MM，可定制

Drum diameter is 3/50/60/76/80/89 mm, customizable

滚筒的形式有：积放滚筒和动力滚筒及无动力滚筒

The drum forms are: the product puts the drum and the power drum and the non-power drum

机型支持正反转

This model supports forward and reverse
