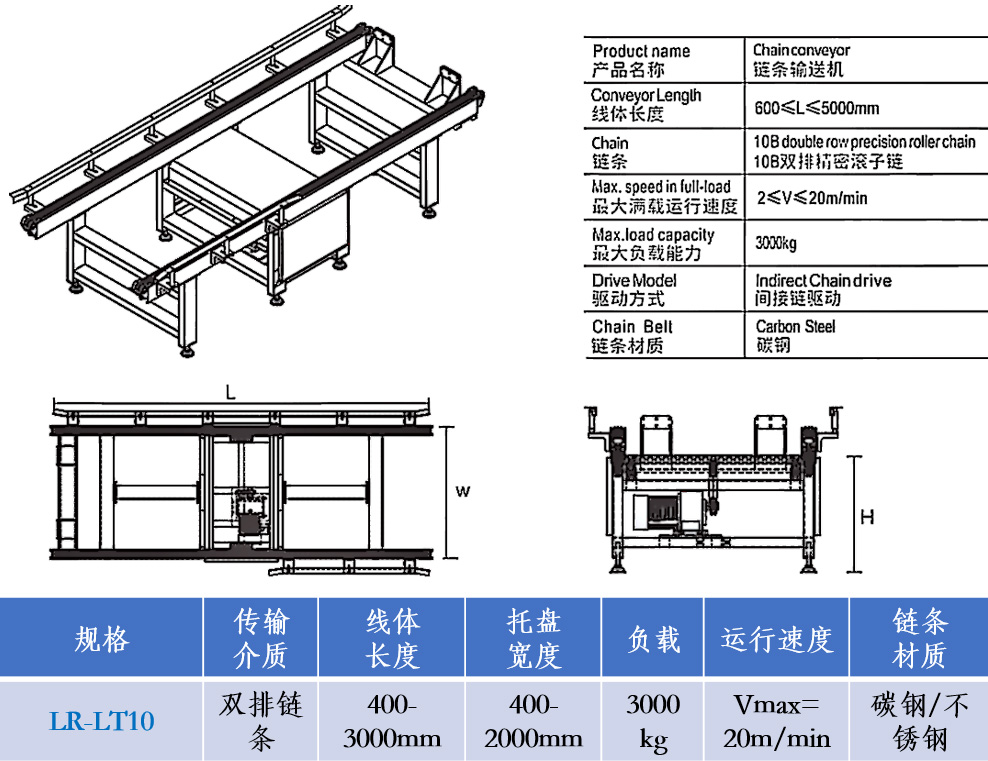

传输介质为10B/10A双排链条,驱动位置可以在输送机的任意位置

Transmission medium for 10B/10A double-row chain, drive position can be in any position conveyor

最大单机负载为3000kg最大运行速度为20m/min

The maximum single machine load is 3000kg and the maximum operating speed is 20m/min

最大线体长度为5m，可使用最大托盘宽度不超过2000mm

The maximum line length is 5m and the maximum tray width can be used is not more than 2000mm

传动模式可根据需要选择直连传动或链条传动

Transmission Mode can be selected according to the need of direct link transmission or chain transmission

该机型支持正反转

This model supports forward and reverse
